| Y2 SERIES DIMENSIONS | ||||
 | ||||

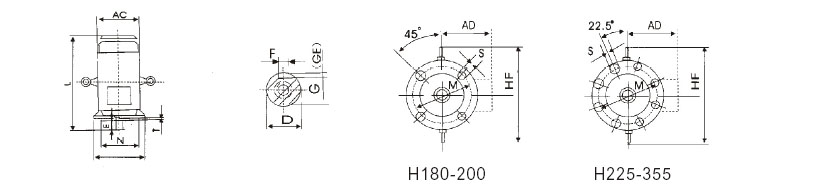

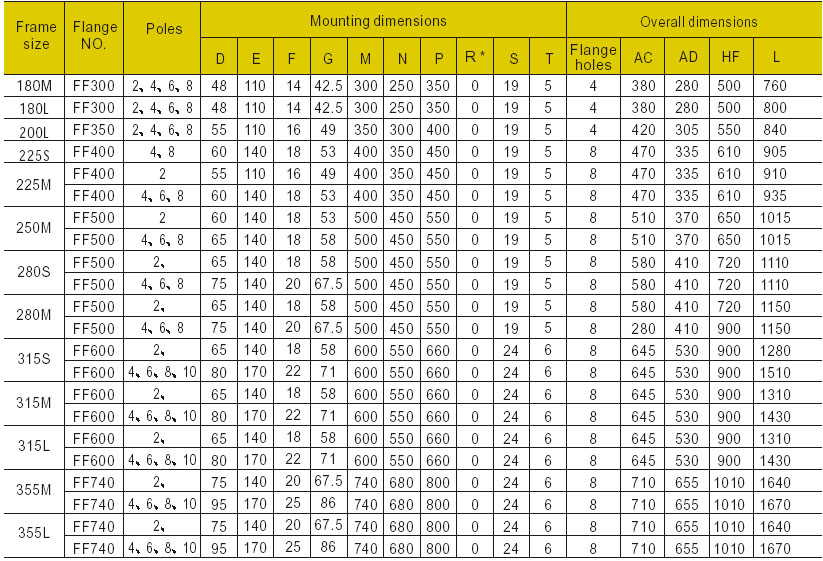

| FRAME
WITHOUT FEET AND END-SHIELD WITH FLANGE | ||||
 | ||||
 | ||||

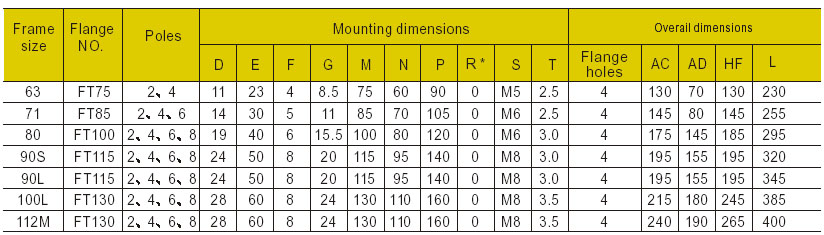

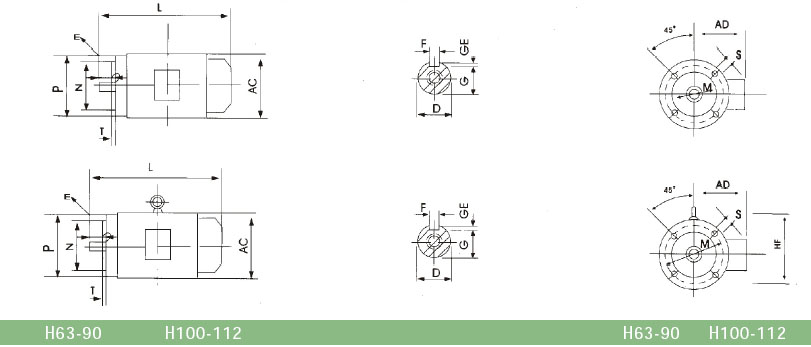

| FRAME
TYPE , FRAME WITHOUT FEET AND END-SHIELD WITH FLANGE
(WITH PLAIN HOLES) | ||||
 | ||||
Ever-Power Industry Co., Ltd. Tel: 0086-571-88220652 Fax: 0086-571-88220651 E-mail: shen@china-reducers.com |
| |||||||||||||||||||
